• David Tessaro

Portal Pet Adoption and Thoughts on Modals

Updated: Apr 1

I hosted a webinar back in July where we built a not-so-simple Service Portal widget from scratch. If you haven’t seen it, check it out here. For those of you looking for the code, your wish has been granted. I’ve posted below the HTML, Client Controller, Server Script, and CSS for the main widget and the embedded widget.

Since July I’ve also had a few thoughts about the widget we built, mainly around whether to use spModal or $uibModal for the modal dialogue. I’d like to share this first before spilling all the code.


Thoughts on modals in Service Portal

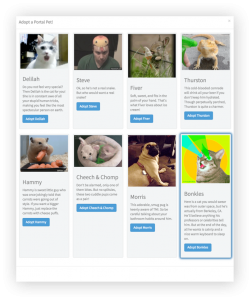

In the webinar, we relied on a modal dialogue for presenting the pet selection widget. I was torn between whether to use the Service Portal modal wrapper (spModal), or to use the bootstrap component itself ($uibModal). Though they both result in a similar experience for the user, it’s the experience for the developer that’s quite different.


spModal is very easy to use. There used to be some nice documentation for it on gitHub, but alas, it was removed in August, due to SN product documentation politics I’m guessing. ServiceNow, if you’re reading this, PLEASE BRING BACK THE SP GITHUB REPO!!! Anyway, spModal allowed us to easily open a modal dialogue and define it’s messages, buttons, etc. The drawback is that the more advanced options were limited.


For example, in the widget we built, we wanted a ‘submit’ button for each pet in our selection. However, the ‘buttonClicked()’ function we needed to trigger was not available to us in the spModal API. So, we had to use angular.element to do some DOM manipluation in the client controller to get the user experience we wanted; and DOM manipulation from the client controller is frowned upon in front-end dev. But I’m a rebel, Dottie. I did it anyway.


Our other option was to use the bootstrap UI modal component to define our modal window. The drawback here is slightly more complex code, and having to put my CSS in a global style sheet rather than in the widget’s CSS field. Furthermore, I’d have to write my HTML template in a script tag in the main widget, but I really wanted to demonstrate embedding a widget for the purpose of logically separating views and functions.


I could have gone either way, and I could go on for another few paragraphs about the differences, pros, and cons. But you didn’t come here for a lecture on modals. You want the code for the widgets…

Anyhow, I realized since July that I didn’t have to DOM manipulation via angular.element to call the modal’s ‘clickButton()’ function. From the embedded widget I have access to parent scopes, which means that ‘clickButton()’ as well as the buttons object live just two steps above in the hierarchy. Therefore, I can call ‘$scope.$parent.$parent.buttonClicked($scope.$parent.$parent.options.buttons[0])‘ from anywhere I want in my embedded widget HTML.

Voila! All the $uibModal functions and objects are available to me when using spModal. I’ve since done this in new widgets and it works like a charm!


Don’t miss our September webinar

Be sure to reserve your place for our September 7th webinar. It’s far less technical than the last portal webinar, but just as useful. Hope to see you there!

5 Essentials All Great Service Portals Have in Common

Portal Pet Adoption Widget

Here’s all the code from the widget webinar. Enjoy!


Main Widget HTML

<div ng-if="!data.currentPet">
 <button ng-click="c.onBrowsePets('lg')" class="adopt btn btn-primary">
 ${Need emotional support?}
 </button>
</div>

<!--House for the adopted pet to live in-->
<div class="pet-house-outer-container" ng-if="data.currentPet">
 <div class="pet-house-container">
 <div class="pet" style="background: url('{{data.currentPet.photo}}') center center;background-size: cover;"></div>
 <img class="pet-house" ng-src="pet-house.pngx" />
 <div class="pet-name">
 {{data.currentPet.name}}
 </div>
 <!--Link to browse pets-->
 <a class="settings" href="javascript:void(0)" ng-click="c.onBrowsePets('lg')">
 <i class="fa fa-cog"></i>
 </a>
 </div>
</div>

<div ng-if="!data.currentPet">
 <button ng-click="c.onBrowsePets('lg')" class="adopt btn btn-primary">
 ${Need emotional support?}
 </button>
</div>

<!--House for the adopted pet to live in-->
<div class="pet-house-outer-container" ng-if="data.currentPet">
 <div class="pet-house-container">
 <div class="pet" style="background: url('{{data.currentPet.photo}}') center center;background-size: cover;"></div>
 <img class="pet-house" ng-src="pet-house.pngx" />
 <div class="pet-name">
 {{data.currentPet.name}}
 </div>
 <!--Link to browse pets-->
 <a class="settings" href="javascript:void(0)" ng-click="c.onBrowsePets('lg')">
 <i class="fa fa-cog"></i>
 </a>
 </div>
</div>

Main Widget Client Controller

function (spModal) {
 //Including spModal service
 var c = this;
 var shared = {}; //This is an empty array we can add to and share with the modal and embedded widget.
 c.onBrowsePets = function(size){
 //This function is called by a button in the HTML

 shared.currentPet = c.data.currentPet; //We store the currentPet data as an object in 'shared' so that it is available to the embedded widget.

spModal.open({
 //spModal.open will open a modal, and we'll pass it the following parameters
 size: size,
 title: 'Adopt a Portal Pet!',
 widget: '*******', //Insert sys_id of the embedded widget - "Pet Selection"
 buttons: [
 {label:'${Adopt}', primary: true}
 ],
 shared: shared //We make the 'shared' array available to modal's embedded widget
 }).then(function() {
 //This function is triggered by submitting/closing the modal.
 c.data.selectedPet = shared.selectedPet; //The selected pet is shared with this widget via the 'share' object
 c.server.update(); //Send the updated data object to the server script
 });

}
}

Main Widget Server Script

(function() {

//Check the Pet Adoption table to populate the currentPet object if there is an existing adopted pet
 var userPet = new GlideRecord('u_pet_adoptions');
 userPet.addQuery('u_user',gs.getUserID());
 userPet.query();
 if(userPet.next()) {
 data.currentPet = {
 //build the currentPet object
 name: userPet.u_pet.u_name.toString(),
 photo: userPet.u_pet.u_photo.getDisplayValue().toString(),
 id: userPet.sys_id.toString()
 }
}

Main Widget CSS

img.pet-house,
div.pet,
div.pet-name,
a.settings {
 position: absolute;
}
button.adopt {
 position: relative;
 padding: 10px 20px;
 margin-bottom: 20px;
 font-size: 1.5em;
 width: 100%;
}
div.pet-house-outer-container {
 position: relative;
 height: 220px;
}
div.pet-house-container {
 position: relative;
 width: 200px;
 text-align: center;
 z-index: 9;
 margin: 0 auto;
}
div.pet {
 height: 100px;
 width: 100px;
 top: 99px;
 left: 50px;
 background-size: cover;
}
img.pet-house {
 height: 200px;
 right: 0;
 z-index: 999;
}
div.pet-name {
 width: 100%;
 top: 65px;
 color: #fff;
 text-shadow: #414141 1px 1px;
 -webkit-transform: rotate(355deg);
 -moz-transform: rotate(355deg);
 -o-transform: rotate(355deg);
 -ms-transform: rotate(355deg);
 transform: rotate(355deg);
 z-index: 9999;
}
a.settings {
 top: 10px;
 right: 30px;
 color: #7B542B;
 font-size: 1.5em;
 z-index: 99999;
}

Embedded Widget HTML

<div class="row pets">
 <div class="col-sm-6 col-md-3 pet" ng-repeat="pet in data.pets">
 <div class="thumbnail" ng-class="{'selected' : c.widget.options.shared.currentPet.name == pet.name}">
 <img ng-src="{{pet.photo}}">
 <div class="caption">
 <h3>{{pet.name}}</h3>
 <p>{{pet.bio}}</p>
 <p>
 <button ng-click="c.selectPet(pet)" class="btn btn-primary" role="button">${Adopt} {{pet.name}}</button>
 </p>
 </div>
 </div>
 </div>
</div>

Embedded Widget Client Controller

function($timeout) {
 var c = this;
 var shared = c.widget.options.shared; //Get the shared object from the "My Pet" widget
 //Function that selects the pet when you click the Adopt button
 c.selectPet = function(pet) {
 shared.selectedPet = pet;

$timeout(function(){
 //The native 'close' binding from Bootstrap UI Modals is not accessible through the spModal service, therefore...
 //We use Angular Element within a $timeout function to simulate clicking the modal's submit button
 angular.element('[ng-click*="buttonClicked"]').triggerHandler('click');
 //The modal's native submit button has the ng-click attribute and calls the function "buttonClicked"
 //Therefore, we can target that attribute and click it
 });
 }
 //Disable the visibility of the default modal button
 angular.element('[ng-click*="buttonClicked"]').css({visibility:'hidden'});
}

Embedded Widget Server Script

(function() {
 //Use GlideRecord to build the list of adoptable pets, store them in the data.pets object
 data.pets=[];
 var petsGR = new GlideRecord('u_pets');
 petsGR.query();
 while(petsGR.next()) {
 data.pets.push({
 name: petsGR.u_name.toString(),
 photo: petsGR.u_photo.getDisplayValue().toString(),
 bio: petsGR.u_bio.toString(),
 id: petsGR.sys_id.toString()
 });
 }
})();

Embedded Widget CSS

.thumbnail.selected {
 box-shadow: 0 0 10px 5px #3071a9;
}
.pets {
 display: -ms-flex;
 display: -webkit-flex;
 display: flex;
 flex-wrap: wrap;
}
.pet {
 display: flex;
}

Oh, and here’s the pet house png:
